CCDA 640-864 Official Cert Guide - Chapter 5 Summary




Wireless LAN Technologies

WLAN Standards




ISM and UNII Frequencies


ISM - Industrial, Scientific and medical - frequencies are set aside by ITU-R radio regulations 5.138 and 5.150. In the U.S., the Federal Communications Commission (15.247) specifies the ISM bands for unlicensed use. Several bands are specified in the following ranges:
900 to 928 MHz
2.4 to 2.5 GHz
5.75 to 5.875 GHz
Of these, channels located in the 2.4-GHz range are used for 802.11b and 802.11g. As shown in Figure above, 11 overlapping channels are available for use. Each channel is 22 MHz wide. It is common to use channels 1, 6, and 11 in the same areas, because these three channels do not overlap.


The UNII - Unlicensed National Information Infrastructure - radio bands were specified for use with 802.11a wireless. UNII operates over three ranges:
UNII 1—5.15 to 5.25 GHz and 5.25 to 5.35 GHz.
UNII 2—5.47 to 5.725 GHz. This range is used by High Performance Radio LAN (HiperLAN) in Europe.
UNII 3—5.725 to 5.875 GHz. This range overlaps with ISM.
UNII provides 12 nonoverlapping channels for 802.11a.


WLAN Standards summary
IEEE ProtocolReleaseFrequencyTypical Data rateMax. Data Rate
Legacy1997ISM1 Mbps2 Mbps
802.11a1999UNII25 Mbps54 Mbps
802.11b1999ISM6,5 Mbps11 Mbps
802.11g2003ISM25 Mbps54 Mbps
802.11n2007 (Draft)ISM or UNII200 Mbps540 Mbps


Service Set Identifier

A service set is all the devices associated with a local or enterprise IEEE 802.11 wireless local area network (WLAN). An SSID is the name of a wireless local area network (WLAN). All wireless devices on a WLAN must employ the same SSID in order to communicate with each other.












Cisco Unified Wireless Network



  • Client devices: With more than 90 percent of shipping client devices certified as Cisco Compatible under the CCX program, almost any client device that is selected will support the Cisco UWN advanced features.
  • Lightweight APs: Dynamically configured APs provide ubiquitous network access in all environments. Enhanced productivity is supported through plug-and-play with the LWAPP used between the APs and the Cisco WLCs. Cisco APs are a proven platform with a large installed base and market share leadership. All Cisco lightweight APs support mobility services, such as fast secure roaming for voice, and location services for real-time network visibility.
  • Network unification: Integration of wired and wireless networks is critical for unified network control, scalability, security, and reliability. Seamless functionality is provided through wireless integration into all major switching and routing platforms.
  • Network management: The same level of security, scalability, reliability, ease of deployment, and management for WLANs as wired LANs is provided through network management systems such as the Cisco WCS, which helps visualize and secure the airspace. The Cisco wireless location appliance provides location services.
  • Mobility services: Unified mobility services include advanced security threat detection and mitigation, voice services, location services, and guest access.






Lightweight Access Point Protocol or LWAPP is the name of a protocol that can control multiple Wi-Fi wireless access points at once. This can reduce the amount of time spent on configuring, monitoring or troubleshooting a large network. The system will also allow network administrators to closely analyze the network.
This system is installed in a central server that gathers data from RF devices from different brands and settings. The server can command a selected group of devices to apply given settings simultaneously.

Note: Layer 2 LWAPP tunnels use EtherType code 0xBBBB. Layer 3 LWAPP uses UDP ports 12222 and 12223.


Layer 3 LWAPP


CAPWAP

CAPWAP - Control and provisioning of wireless access points. The protocol specification is described in RFC5415 and an IEEE 802.11 binding is provided in RFC5416 and is based on LWAPP (Lightweight Access Point Protocol).
CAPWAP is a standard, interoperable protocol that enables a controller to manage a collection of wireless access points, and uses UDP ports 5246 and 5247.
Cisco Unified Wireless Network Split-MAC Architecture

CAPWAP, which is based on LWAPP, is a standard, interoperable protocol that enables a controller to manage a collection of wireless access points. CAPWAP is being implemented in controller software release 5.2 for these reasons:
  • To provide an upgrade path from Cisco products that use LWAPP to next-generation Cisco products that use CAPWAP
  • To manage RFID readers and similar devices
  • To enable controllers to interoperate with third-party access points in the future
LWAPP-enabled access points can discover and join a CAPWAP controller, and conversion to a CAPWAP controller is seamless. For example, the controller discovery process and the firmware downloading process when you use CAPWAP are the same as when you use LWAPP. The one exception is for Layer 2 deployments, which are not supported by CAPWAP.
You can deploy CAPWAP controllers and LWAPP controllers on the same network. The CAPWAP-enabled software allows access points to join either a controller that runs CAPWAP or LWAPP. The only exception is the Cisco Aironet 1140 Series Access Point, which supports only CAPWAP and therefore joins only controllers that run CAPWAP. For example, an 1130 series access point can join a controller that runs either CAPWAP or LWAPP whereas an 1140 series access point can join only a controller that runs CAPWAP.






Access Point Modes

  • Local mode—This is the default mode of operation. When an LAP is placed into local mode, the AP will transmit on the normally assigned channel. However, the AP also monitors all other channels in the band over a period of 180 seconds to scan each of the other channels for 60ms during the non-transmit time. During this time, the AP performs noise floor measurements, measures interference, and scans for IDS events.
  • REAP mode—Remote Edge Access Point (REAP) mode enables an LAP to reside across a WAN link and still be able to communicate with the WLC and provide the functionality of a regular LAP. REAP mode is supported only on the 1030 LAPs.
  • H-REAP Mode— H-REAP is a wireless solution for branch office and remote office deployments. H-REAP enables customers to configure and control access points (APs) in a branch or remote office from the corporate office through a WAN link without the need to deploy a controller in each office. H-REAPs can switch client data traffic locally and perform client authentication locally when the connection to the controller is lost. When connected to the controller, H-REAPs can also tunnel traffic back to the controller.
  • Monitor mode—Monitor mode is a feature designed to allow specified LWAPP-enabled APs to exclude themselves from handling data traffic between clients and the infrastructure. They instead act as dedicated sensors for location based services (LBS), rogue access point detection, and intrusion detection (IDS). When APs are in Monitor mode they cannot serve clients and continuously cycle through all configured channels listening to each channel for approximately 60 ms.
  • Rogue detector mode—LAPs that operate in Rogue Detector mode monitor the rogue APs. They do not transmit or contain rogue APs. The idea is that the rogue detector should be able to see all the VLANs in the network since rogue APs can be connected to any of the VLANs in the network (thus we connect it to a trunk port). The switch sends all the rogue AP/Client MAC address lists to the Rogue Detector (RD). The RD then forwards those up to the WLC in order to compare with the MACs of clients that the WLC APs have heard over the air. If MACs match, then the WLC knows the rogue AP to which those clients are connected is on the wired network.
  • Sniffer mode—An LWAPP that operates in Sniffer mode functions as a sniffer and captures and forwards all the packets on a particular channel to a remote machine that runs Airopeek. These packets contain information on timestamp, signal strength, packet size and so on. The Sniffer feature can be enabled only if you run Airopeek, which is a third-party network analyzer software that supports decoding of data packets.
  • Bridge Mode— Bridge mode is used when the access points are setup in a mesh environment and used to bridge between each other.



WLAN Authentication



Authentication Options

After the wireless client associates to the AP, the AP blocks the client from gaining access to anything on the network, except the authentication server, until the client has logged in and authenticated. The client (the supplicant) supplies network login credentials such as a user ID and password to the authenticator (the WLC). The supplicant, the authenticator, and the authentication server participate in the authentication process. If the authentication process succeeds, the authenticator allows network access to the supplicant through the appropriate port. The WLC tells the lightweight AP which dynamic interface (as described in the “WLC Interfaces” section later in this chapter) and policies to use for the client.

After mutual authentication has been successfully completed, the client and RADIUS server each derive the same encryption key, which is used to encrypt all data exchanged between the client and the WLC. Using a secure channel on the wired LAN, the RADIUS server sends the key to WLC, which stores and uses it when communicating with the client. The result is per-user, per-session encryption keys, with the length of a session determined by a policy defined on the RADIUS server. When a session expires or the client roams from one AP to another, a reauthentication occurs and generates a new session key. The reauthentication is transparent to the user.

Several 802.1X authentication types exist, each providing a different approach to authentication while relying on the same framework and EAP for communication between a client and the authentication server. Cisco UWN EAP support includes the following types:
  • EAP-Transport Layer Security (EAP-TLS): EAP-TLS is an Internet Engineering Task Force (IETF) open standard that is well supported among wireless vendors but rarely deployed. It uses PKI to secure communications to the RADIUS server using TLS and digital certificates; it requires certificates on both the server and client.
  • EAP-Tunneled TLS (EAP-TTLS): EAP-TTLS was codeveloped by Funk Software and Certicom. It is widely supported across platforms and offers very good security. EAP-TTLS uses PKI certificates only on the RADIUS authentication server. The authentication of the client is done with a username and password.
  • Protected Extensible Authentication Protocol (PEAP): PEAP was a joint proposal by Cisco Systems, Microsoft, and RSA Security as an open standard. Authentication of the client is done using PEAP-Generic Token Card (GTC) or PEAP-Microsoft Challenge Handshake Authentication Protocol version 2 (MSCHAPv2). PEAP-MSCHAPv2 is the most common version and is widely available in products and widely deployed. It is similar in design to EAP-TTLS but requires a PKI certificate only on the server to create a secure TLS tunnel to protect user authentication. PEAP-GTC allows more generic authentication to a number of databases, such as Novell Directory Services.
  • Cisco Lightweight Extensible Authentication Protocol (LEAP): LEAP is an early proprietary EAP method and is supported in the CCX program. It is vulnerable to dictionary attack.
  • Cisco EAP-Flexible Authentication via Secure Tunneling (EAP-FAST): EAP-FAST is a proposal by Cisco Systems to fix the weaknesses of LEAP; it is supported in the CCX program. EAP-FAST uses a protected access credential (PAC) and optionally uses server certificates. EAP-FAST has three phases. Phase 0 is an optional phase where the PAC can be provisioned manually or dynamically. In Phase 1, the client and the AAA server use the PAC to establish TLS tunnel. In Phase 2, the client sends user information across the tunnel.
Each EAP type has advantages and disadvantages. Trade-offs exist between the security provided, manageability, operating systems supported, client devices supported, client software and authentication messaging overhead, certificate requirements, user ease of use, and WLAN infrastructure device support. When selecting an EAP type to use, considerations include the type of security mechanism used for the security credentials, the user authentication database, the client operating systems in use, the available client supplicants, the type of user login needed, and whether RADIUS or AAA servers are used.

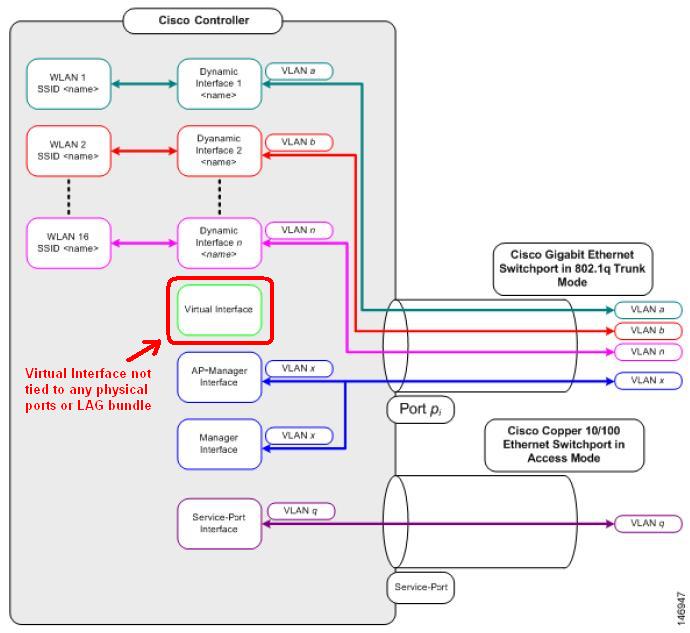

WLAN Controller Components

WLAN - Identified by a unique SSID and assigned to an interface
Interface - A logical connection that maps to a VLAN in the wired network
Port - A physical connection to the wired LAN

WLC Interface Types


















RF Site Survey


Wireless Mesh for Outdoor Wireless

Outdoor wireless networks deliver real-time access to people, applications, and network resources, transforming down-time into productive time.
Whether you're a mobile worker e-mailing a customer from the airport, a student at a coffee shop downloading a homework assignment on your PDA, or a police officer viewing a video surveillance camera from a patrol car, mobility is letting you stay connected, anytime, anywhere.
Cisco outdoor wireless solutions come as small as a single hot spot for a home office and can grow to high-speed wireless connectivity across entire cities and counties.

Wireless Mesh Access Points

The Cisco wireless mesh networking solution lets you deploy cost-effective, scalable outdoor wireless LANs. It doesn't matter whether you're an individual or a government agency IT manager. There's a solution for you.

Wireless Bridges

Wireless bridges offer high-speed, building-to-building or campus connectivity for line-of-sight applications. Wi-Fi bridging solutions offer an affordable alternative to leased-line services and operate by sharing LAN/Internet access between two or more sites.

Mobile Networks

The Cisco Mobile Network forms a wireless network in and around a vehicle. This allows users to roam across different networks in a metropolitan area while maintaining a secure broadband connection in motion. It's specifically designed for the secure delivery of data for public safety and transportation applications.



            MeshDesign Recommendations

Campus Design Considerations



            Local MAC


            REAP


            Hybrid REAP


Branch Office Controller Options
